A VU meter, which stands for Volume Unit meter, is an essential tool in the audio recording and broadcasting industry. It provides a visual representation of the signal level in audio equipment, offering a measurement of sound level that reflects perceived loudness. The device was originally developed in the early 1940s by experts from the broadcasting sector and Bell Telephone Laboratories, and it has since become standardized for level alignment in audio production.

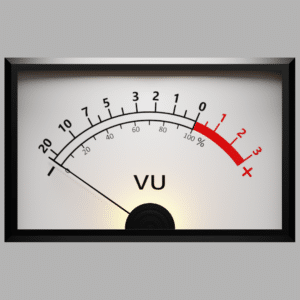

What is a VU Meter? - Understanding Audio Signal LevelsThis device displays a reading in VUs to help audio engineers and producers determine the optimal recording level. Typically calibrated to show the average signal level, a VU meter responds to audio signals in a way that emulates how the human ear perceives volume, which is why it doesn’t reflect the exact, moment-to-moment fluctuations of audio volume. The goal behind this design is to ensure that audio signals are recorded and played at an appropriate and consistent level, which prevents recording issues such as distortion that can occur when levels are too high.

Despite the advent of digital technology and more advanced metering systems, VU meters remain popular due to their simplicity and analog charm. The instrument’s needle movement gives users a visual interpretation of their audio material, making it easier to maintain the nominal operating level, usually denoted as 0VU. This aids in achieving a well-balanced mix, and many professionals utilize VU meters to fine-tune the dynamics of audio signals for a professional sound output.

Understanding VU Meters

VU meters are critical for engineers to monitor audio signal levels accurately, ensuring clarity and preventing distortion in audio production.

History and Development

The origins of the VU meter, or Volume Unit meter, date back to a 1940 paper by the Institute of Radio Engineers. Crafted by specialists from CBS, NBC, and Bell Telephone Laboratories, the electromechanical device was designed to provide a standard method for assessing audio signal strength. The term “volume unit” (VU) was coined to represent these measurements, which have since become a staple in audio engineering.

Technical Principles

At its core, a VU meter measures audio signal strength in terms of volume units (VU) with a typical scale ranging from -20 dBVU to +3 dBVU. Its reading is an average meter level, not an exact peak level, reflecting the RMS (Root Mean Square) of the signal frequency response. The meter’s needle moves to represent the average level, which correlates with the perceived loudness. Notably, 0 dBVU is often equivalent to +4 dBu, an electrical voltage standard.

VU Meter vs. Other Metering Methods

VU meters differ significantly from other metering methods like PPM (Peak Programme Meters) and digital peak meters. PPM meters quickly indicate peak levels of audio signals, offering a more instantaneous reading compared to the slower response of VU meters. In digital audio, loudness monitoring generally relies on dBFS (decibels relative to full scale), which 0 dBFS indicates the maximum possible digital level. VU meters, with their slower response, are valued for their reflection of perceived loudness rather than the exact instantaneous level, providing a sense of realism in mixing applications.

VU Meters in Audio Equipment

VU meters play an essential role in gauging audio signal levels across various equipment. They provide a visual representation to help maintain optimal levels and quality in analog and digital domains.

Analog Gear

In the realm of analog audio equipment, VU meters are ubiquitous, featuring a physical needle that moves to represent the volume unit (VU). The needle offers a visual measure of an audio signal’s strength on a scale typically ranging from -20 dB to 0 dB. Engineers in radio and recording studios use VU meters on mixing consoles to monitor signal levels and ensure they align with the nominal operating level, which is often around +4dBu. This prevents signal distortion while capturing the dynamic nature of the sound.

Digital VU Meters

With the advent of digital technology, VU meters have been replicated in software form as digital VU meters and modern plugins. These digital counterparts mimic the behavior and appearance of their analog predecessors within audio editing and recording software, allowing users to observe levels familiarly. Despite being digital, they still display levels in dBu and retain the classic needle animation, providing consistency across the analog-digital divide.

Consumer Audio Equipment

Consumer audio equipment also incorporates VU meters, albeit in a more simplified form compared to professional gear. This inclusion dates back to the equipment’s origins with Bell Telephone and early radio broadcasts. Whether found in vintage stereo systems or modern interfaces, these meters give consumers visual feedback on the audio output, enhancing the user experience. Though often scaled down in complexity, they continue to serve as a nostalgic and functional element in audio equipment for everyday listeners.

Mixing and Recording with VU Meters

In the world of audio production, efficient use of VU meters during mixing and recording is essential to achieving a well-balanced mix with proper dynamics and headroom.

Gain Staging and Headroom

Gain staging is the process of managing the levels of an audio signal from the input to the output. Proper gain staging with the help of VU meters ensures that the signal level is optimized, usually aiming for the “sweet spot” around 0 VU, which generally corresponds to -18 dBFS in digital recording. This practice allows for adequate headroom, preventing clipping and preserving dynamic range, leading to a cleaner mix overall.

  • Target Level: Aim for 0 VU on the meter for the optimal signal level.
  • Headroom: Ensure there is enough space above the target level to accommodate transients and dynamics without clipping.

Understanding Levels and Dynamics

A VU meter provides a visual representation of the average level of audio signals over a period, reflecting how loud a signal feels to the human ear. Therefore, they are crucial in understanding the energy and dynamics of a mix. VU meters measure dBVU and are calibrated to ensure consistency across the recording and mixing process.

  • Measurements: Use VU meters to read average levels rather than peak levels.
  • Dynamics Control: Monitor levels to manage the dynamic range effectively, using tools like compression and EQ as needed.

Mixing Techniques

VU meters are invaluable for balancing the relative levels of tracks within a mix. They help engineers find the right mix bus levels and apply effects like compression judiciously. When tracks are balanced around the VU meter’s sweet spot, the mix tends to have more uniform energy, aiding the application of EQ and other effects, and yielding a more cohesive end product.

  • Balanced Levels: Use the meter to maintain consistent signal levels across all tracks.
  • Effects Processing: Observe the VU meter when applying dynamic processing, such as compression, to maintain the desired energy and dynamics.

Practical Applications and Tips

A VU meter is instrumental in ensuring audio signals are kept at optimal levels throughout the recording and mixing process. It plays a key role in preserving the integrity of sound by preventing distortion and clipping while maintaining a balanced mix.

Optimizing Volume Balance

In the mixing console environment, engineers rely on VU meters for adjusting the gain structure. They need to maintain a consistent volume balance across different instruments and sections of a track, such as the verse and chorus. When utilizing a VU meter, aligning levels close to 0 dBVU without hitting the red zone ensures a mix that is robust without being over-amplified.

  • Tip: Use reference tracks to compare your levels, ensuring your mix achieves a similar sonic balance.

Identifying Clipping and Distortion

VU meters aid in spotting potential clipping and distortion early on. They measure the average level of an audio signal, also known as RMS, and provide a visual cue for when signals unders or overs the ideal threshold. A VU meter will not directly show short-term peaks that could cause digital clipping in the software (DAW), but it still serves as a valuable tool for gain reduction to avoid those issues.

  • Tip: It’s crucial to keep an eye on the meter during loud sections of a track to prevent unintended distortion.

Utilizing Plugins and DAW Features

Digital VU meter plugins are available for integration with most DAWs, providing the same traditional visual feedback within a digital realm. These plugins allow producers to tap into the analog feel of VU meters while reaping the benefits of modern digital signal processing.

  • Tip: When .digital plugins are combined with the VU meter, align the software’s output to the optimal level to harmonize both digital and analog leveling cues.

Advanced Metering Concepts

Understanding advanced metering concepts requires an appreciation of how VU meters capture moment-to-moment volume fluctuations, the intricacies of stereo and surround sound and the differences between loudness and perceived loudness.

Ballistics and Response Times

VU meters are characterized by their ballistics, which refers to the meter’s response to changes in audio level. The response time of a VU meter typically adheres to a standardized rise time of 300 ms to reach 99% of the signal’s peak. This response time can result in an overshoot, an effect where the meter pointer exceeds the actual signal level. In contrast, digital meters can have near-instantaneous response times, capturing transient peaks without lag. The ballistic nature of VU meters often means they exhibit a slower response, representing an average rather than an instantaneous level, which can be more reflective of perceived loudness.

Stereo and Surround Metering

Advanced metering extends to stereo and surround setups, which involve multiple VU meters to represent the levels of individual channels. Effective monitoring ensures a well-balanced mix, with each channel set to an appropriate level relative to a reference. In stereo metering, dual VU meters are used—one for the left channel, and another for the right. Surround metering is more complex, utilizing a VU meter for each channel in the surround configuration, whether it be 5.1, 7.1, or beyond.

Loudness and Perceived Loudness

Loudness is an objective measure of sound intensity, usually denoted in decibels (dB). However, perceived loudness reflects how loud a sound feels to the listener and can vary depending on the frequency and response time of the meter. VU meters portray an approximation of perceived loudness by averaging signal levels over time, offering a more musical representation compared to full-scale peak meters. Modern loudness standards often use LUFS (Loudness Units relative to Full Scale) to measure perceived loudness with greater accuracy. These standards aim to maintain consistent playback levels across different media platforms.

Mastering and Finalizing Audio

Mastering engineers rely on VU meters to gauge the overall loudness and ensure consistent volume levels throughout an audio track. These meters play a crucial role in fine-tuning the final mix to achieve professional sound quality.

The Role of VU Meters in Mastering

A VU (Volume Unit) meter is indispensable in the mastering phase, providing a visual representation of average volume levels. The 0 dBVU reference point corresponds to a nominal level before an amplifier or other device incurs saturation. By keeping the audio persistently around 0 dBVU, mastering engineers can avoid unwanted distortion and maintain the dynamic quality of the track. VU meters, with their slower response time, excel at displaying the perceived loudness rather than the exact peak level of audio signals. This helps engineers focus on the gain stage in a way that is reflective of how human ears perceive loudness.

Monitoring Transients and Peaks

While VU meters show average levels, they are not designed to catch fast transients or instantaneous peaks that might clip speakers or other playback systems. Therefore, alongside VU meters, peak meters are used to track these spikes in volume which can be detrimental to audio quality if not properly managed. Transients are shown in real time, allowing for precise adjustments to the gain stage to ensure these sudden bursts of sound are in line with the rest of the audio.

Achieving the Desired Loudness

In mastering, achieving the desired loudness is a balancing act that involves both volume units and decibels (dB). A VU meter’s bar graph displays the average level to help set the basis for a track’s loudness. Mastering engineers aim for consistency and a level of loudness that meets industry standards without compromising the track’s dynamics. By combining VU meters’ analog sensibility and digital peak meters’ precision, they can ensure that the track will sound good on a wide range of playback systems, from large speakers to small earphones.
